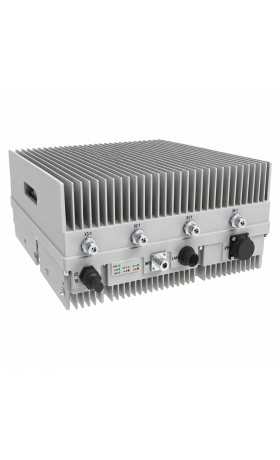

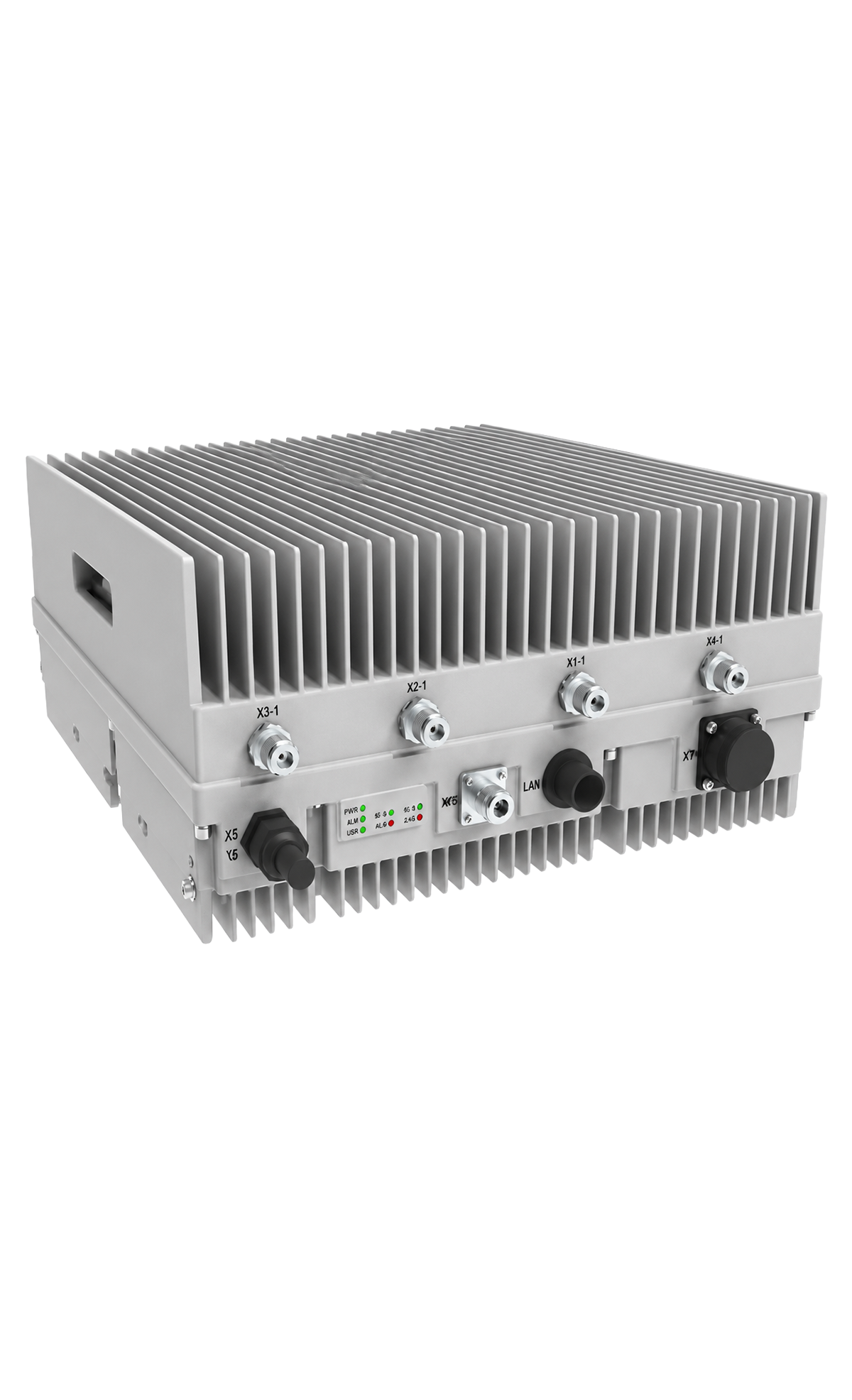

The 5G N41+B8 Outdoor Integrated Base Station is a dual-mode outdoor base station designed for combined 5G NR and 4G LTE network deployment. It supports the N41+B8 band combination and provides high-power radio access performance for outdoor coverage, private network construction and dedicated telecom infrastructure projects.
With NR 2×40W and LTE 2×40W output power, this integrated outdoor base station is suitable for scenarios where wider coverage, stable signal delivery and simplified outdoor installation are required. Its compact integrated structure makes it a practical solution for operators, industrial users, enterprise campuses and non-operator private network environments.
Application
This product is suitable for outdoor 4G and 5G coverage, private network deployment, industrial parks, enterprise campuses, public infrastructure communication, fixed wireless access projects and dedicated outdoor telecom environments where both 5G capacity and LTE service continuity are needed.
Key Features
- Dual-mode outdoor integrated base station for 4G and 5G networks
- Supports N41+B8 band combination
- NR output power: 2×40W
- LTE output power: 2×40W
- Designed for outdoor coverage and capacity expansion
- Integrated structure for simplified deployment and installation
- Suitable for operators and private network customers
- Applicable to industrial, enterprise and campus communication environments
- Supports 5G NR capacity with LTE coverage continuity
Technical Specifications
| Item | Parameter |
|---|---|
| Product type | Outdoor integrated base station |
| Network mode | Dual-mode 4G and 5G |
| Band combination | N41+B8 |
| 5G NR band | N41 |
| 4G LTE band | B8 |
| NR output power | 2×40W |
| LTE output power | 2×40W |
| Installation scenario | Outdoor deployment |
| Main application | Outdoor coverage, private networks, operator and non-operator deployments |
| Detailed frequency range | To be confirmed |
| Power supply | To be confirmed |
| Dimensions | To be confirmed |
| Weight | To be confirmed |
Operational Benefits
The N41+B8 configuration provides a practical combination for outdoor 4G and 5G deployment where 5G capacity and LTE service continuity are both required. The high-power 2×40W design supports stronger radio coverage and makes the product suitable for wider outdoor service areas.
As an integrated outdoor base station, the product helps simplify deployment by reducing the need for separate radio and baseband elements in smaller network projects. This makes it suitable for faster installation, easier site planning and flexible use in private or dedicated network environments.
Recommended Use Cases
- Outdoor 4G and 5G coverage deployment
- Private 5G network construction
- Industrial park and factory communication networks
- Enterprise campus outdoor coverage
- Operator outdoor capacity expansion
- Fixed wireless access infrastructure
- Public service and dedicated communication systems
- Non-operator private network projects
