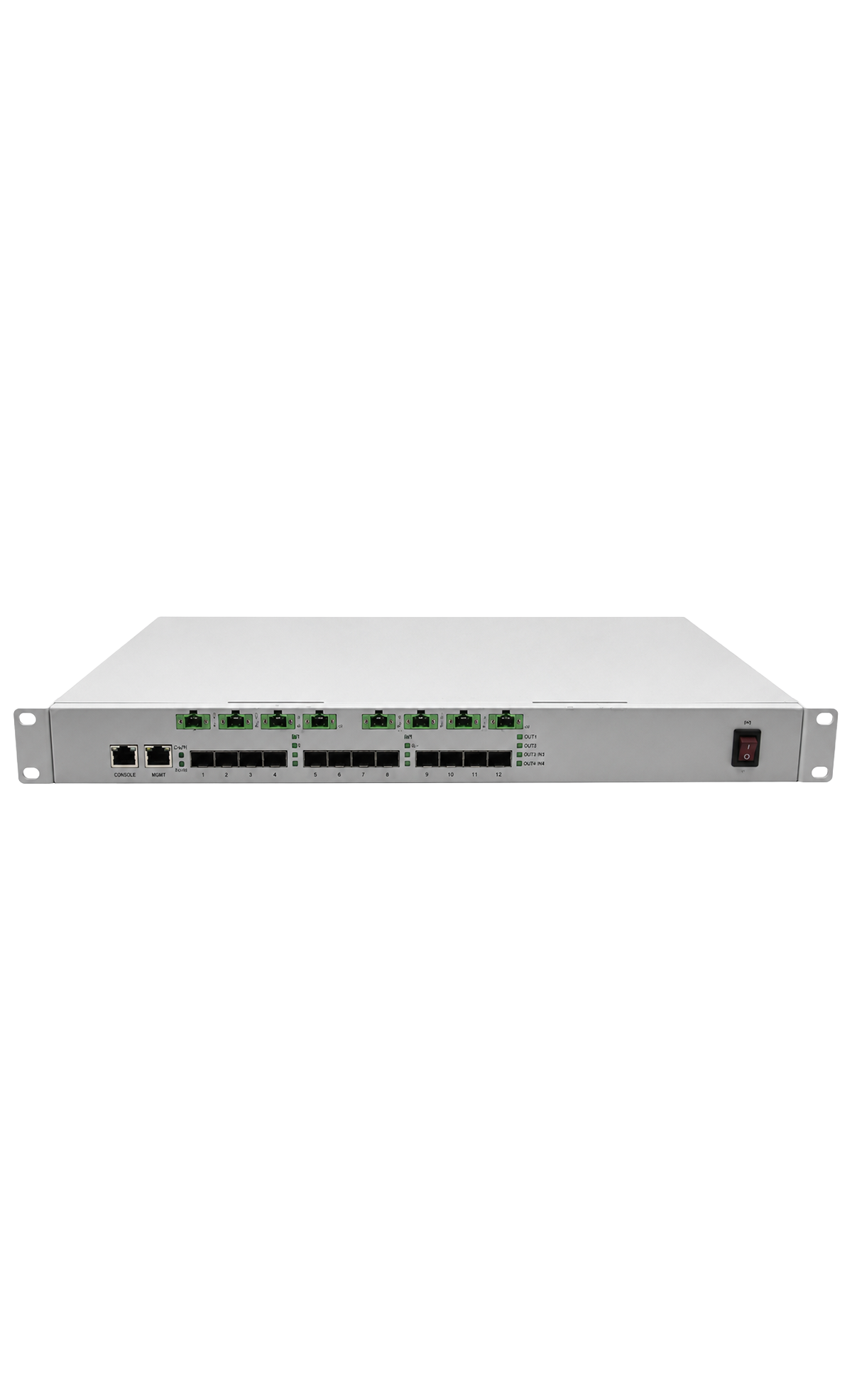

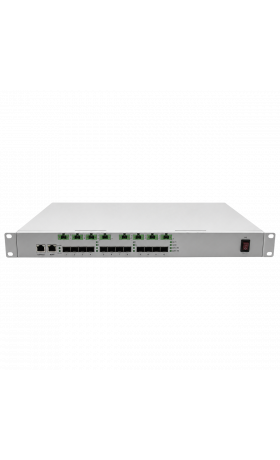

The 5G Extended Pico Base Station rHub Unit is a remote hub component designed for distributed indoor 5G coverage systems. It is used as part of the extended pico base station architecture, where fiber-optic transmission enables efficient signal distribution between the central baseband unit and remote radio access points.
As part of the 5G base station product range, the rHub unit helps extend indoor 5G signal coverage, improve deployment flexibility and support deep coverage in buildings, venues, enterprise facilities and other indoor environments where precise capacity distribution is required.
Application
This product is designed for indoor 5G coverage systems, distributed small base station deployment, fiber-optic signal distribution, enterprise buildings, commercial facilities, transportation hubs, public venues, industrial indoor networks and private 5G capacity expansion.
Key Features
- Remote Hub unit for the 5G Extended Pico Base Station system
- Designed for distributed indoor 5G coverage architecture
- Supports fiber-optic signal transmission and distribution
- Acts as an intermediate connection unit between BBU and pRRU components
- Suitable for precise and deep indoor 5G coverage deployment
- Compact 1U-style design for easier installation in telecom rooms and equipment cabinets
- Supports TDD-based extended pico base station systems
- Applicable to 2.6GHz, 3.5GHz and 4.9GHz indoor 5G deployment scenarios
- Low unit weight for simplified handling and installation
- Suitable for indoor private 5G networks and operator indoor coverage projects
Technical Specifications
| Item | Parameter |
|---|---|
| Product type | rHub unit / Remote Hub unit |
| System architecture | Distributed 5G extended pico base station system |
| Main function | Fiber-optic signal transmission and distribution between BBU and pRRU units |
| Supported deployment scenario | Indoor 5G signal coverage and capacity distribution |
| Working frequency range | 2.6GHz, 3.5GHz, 4.9GHz system scenarios |
| Operating mode | TDD system architecture |
| System channel bandwidth | 100MHz |
| System maximum transfer rate | ≥850Mbps DL, 250Mbps UL |
| System transmission delay | ≤15ms |
| System connected users | ≥1,200 |
| System concurrent users | ≥400 |
| rHub size | 439 × 345 × 44.5 mm, without ear straps, ±3 mm |
| rHub weight | ≤5.7 kg |
| rHub power dissipation | ≤39 W, ≤500 W system-related configuration value |
| Power supply | AC 220V |
Operational Benefits
The rHub unit enables flexible distribution of indoor 5G signal resources by connecting the BBU with remote pRRU units through a distributed architecture. This makes it suitable for indoor environments where one centralized unit needs to support multiple remote radio access points across different coverage zones.
With compact dimensions, low weight and AC 220V power supply, the 5G Extended Pico Base Station rHub Unit can be installed in equipment rooms, telecom cabinets and indoor network distribution points. It supports deep indoor coverage planning for commercial, industrial and public network environments.
Recommended Use Cases
- Indoor 5G distributed coverage systems
- Extended pico base station deployment
- BBU to pRRU signal distribution
- Enterprise building 5G coverage
- Shopping malls, airports and public venues
- Industrial indoor private 5G networks
- Operator indoor coverage expansion
- Fiber-optic indoor telecom infrastructure
