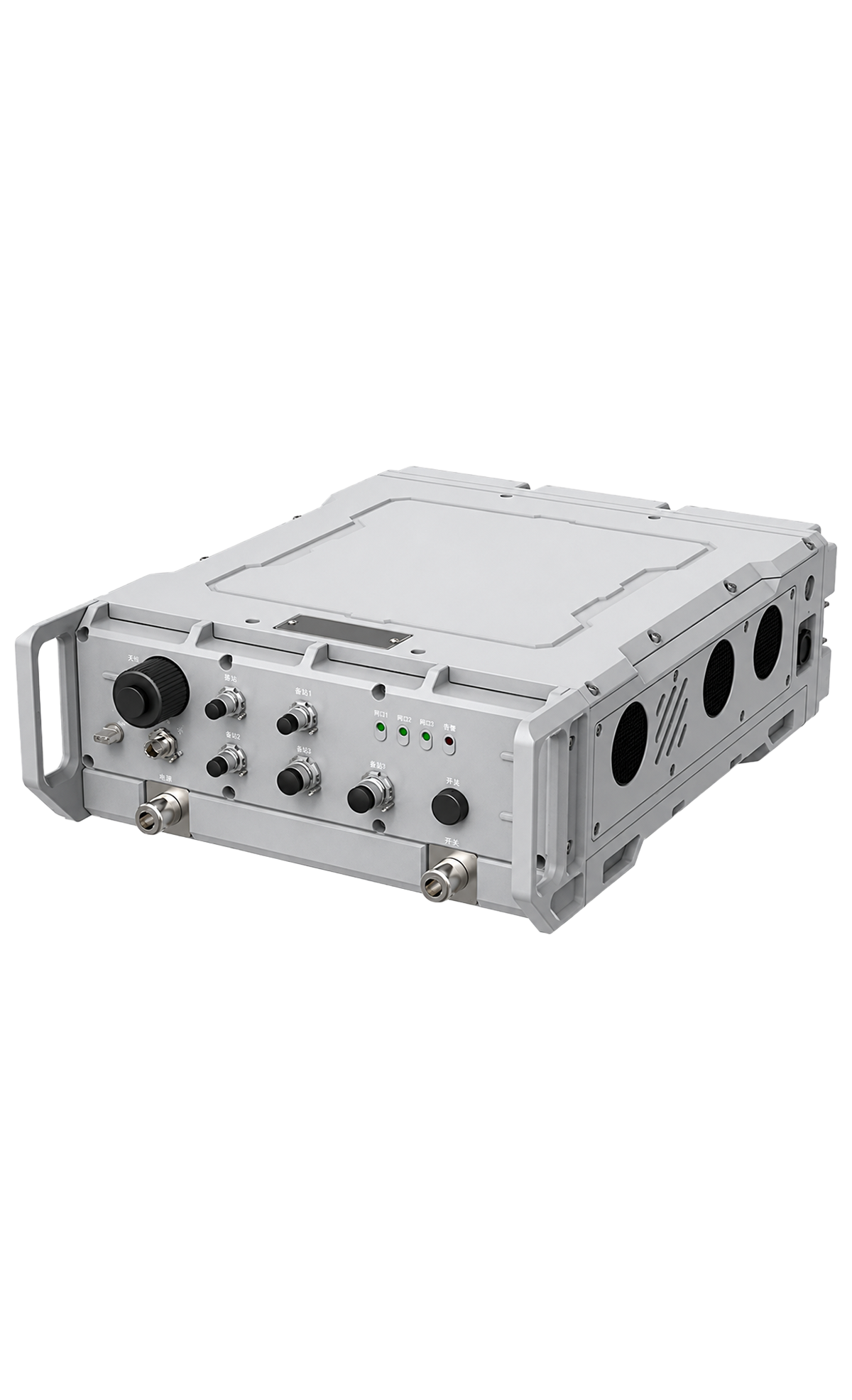

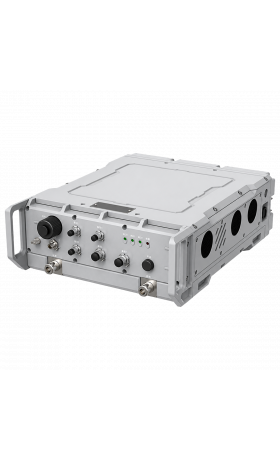

The 5G Portable Station is an access node device designed for mobile usage environments where fast deployment, flexible wireless coverage and reliable broadband communication are required. It can use existing infrastructure to rapidly establish wireless coverage in a task area, provide broadband access for different terminals and support business switching capabilities.
As part of the 5G base station product range, this portable station is suitable for temporary communication coverage, emergency response, field operations, mobile command scenarios and private 5G network extension. By using multiple base stations for wireless networking, it can expand the network coverage range and improve communication availability in demanding environments.
Application
This product is designed for portable communication systems, emergency network deployment, field operations, temporary broadband access, public safety communication, mobile command tasks, private 5G coverage and multi-base-station wireless networking.
Key Features
- Portable 5G access node for mobile usage environments
- Designed for rapid wireless coverage in task areas
- Supports broadband access for various terminal devices
- Provides business switching capabilities for mobile network scenarios
- Can expand wireless coverage through multiple base stations
- Supports 5G FDD access and TDD cell-to-cell networking
- Maximum transfer rate of 400Mbps or higher
- Single-hop inter-station self-organizing network transmission rate of 105Mbps or higher
- Supports up to 500 connected users and 200 concurrent users
- Transmission delay of 15ms or less
- Battery-powered operation with DC 18V to 36V power supply support
- Suitable for portable, emergency and temporary communication deployments
Technical Specifications
| Item | Parameter |
|---|---|
| Working frequency range | 5G access uplink: 703MHz ~ 748MHz 5G access downlink: 758MHz ~ 803MHz Cell-to-cell networking: 566MHz ~ 678MHz |
| Operating mode | 5G: FDD Cell-to-cell networking: TDD |
| Channel bandwidth | 5G access: 5MHz, 10MHz, 15MHz, 20MHz, 30MHz with adaptive adjustment support Cell-to-cell networking: 10MHz, 20MHz with adaptive adjustment support |
| Maximum transfer rate | Maximum transfer rate: ≥400Mbps Single-hop transmission rate of the inter-station self-organizing network: ≥105Mbps |
| Transmitted power | 2 antennas, 33 dBm / antenna |
| Transmission delay | ≤15ms |
| Number of connected users | 500 |
| Number of concurrent users | 200 |
| Size | Without battery: ≤375 × 290 × 120 mm With battery: ≤505 × 290 × 120 mm |
| Weight | ≤8 kg without batteries, directional antenna and accessories ≤13 kg with batteries, without directional antenna and accessories |
| Power dissipation | ≤200 W |
| Power supply | DC 18V ~ 36V Battery powered Adapter connected to mains power supply |
Operational Benefits
The portable format allows the station to be deployed quickly in locations where fixed infrastructure is unavailable, damaged or not sufficient for task-area coverage. Its compact dimensions, battery-powered operation and support for DC input make it suitable for mobile teams, emergency units and field communication projects.
With support for 500 connected users, 200 concurrent users, low transmission delay and self-organizing inter-station networking, the 5G Portable Station provides a practical solution for extending broadband communication coverage in temporary or mission-critical environments.
Recommended Use Cases
- Portable 5G task-area coverage
- Emergency response and disaster recovery communication
- Field operations and temporary network deployment
- Public safety and mission-critical communication systems
- Mobile command and coordination scenarios
- Private 5G network extension
- Multi-base-station wireless networking
- Battery-powered broadband access in remote locations
