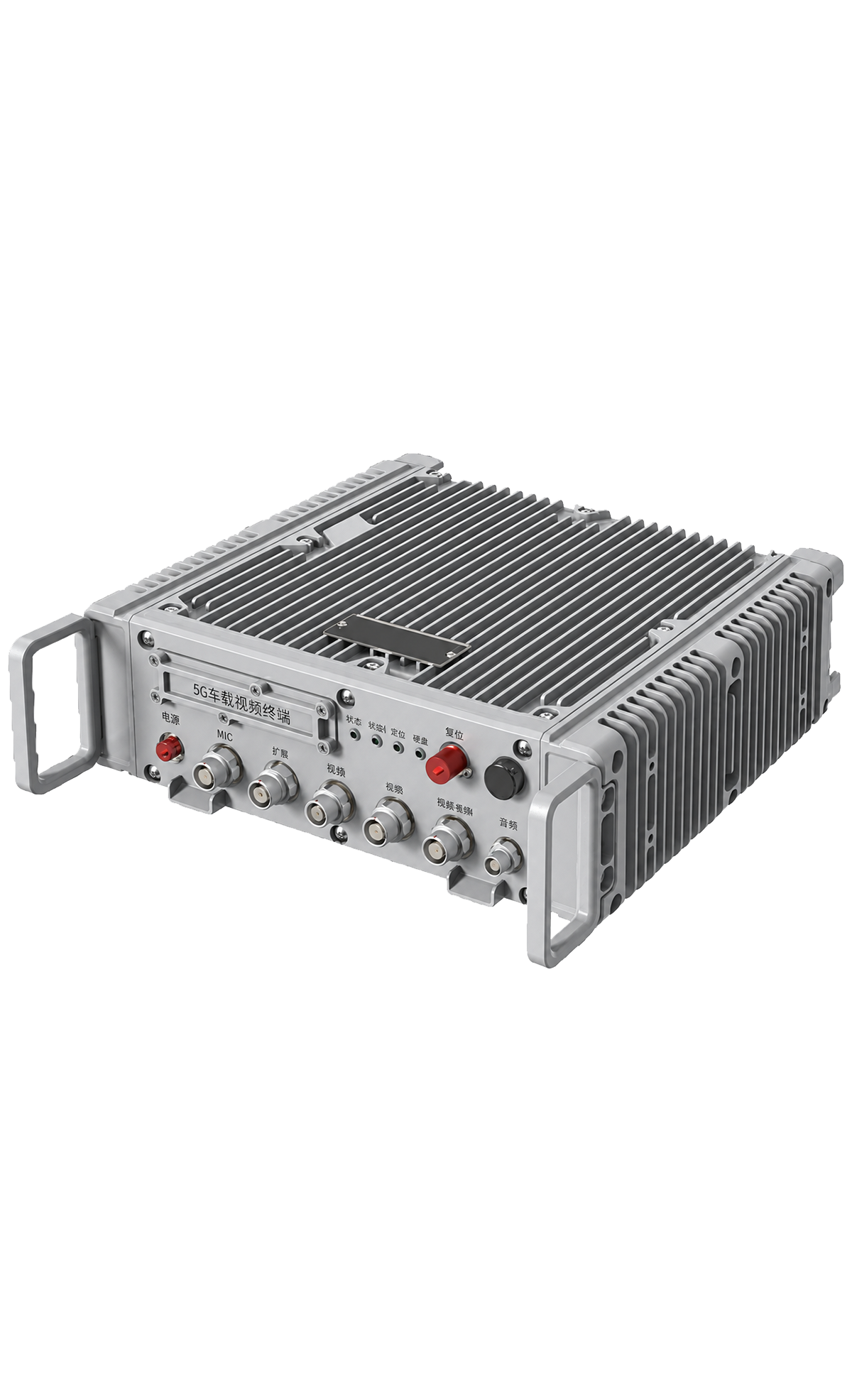

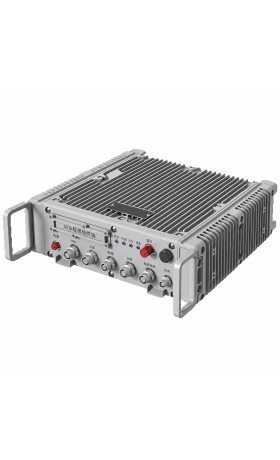

The 5G Vehicle-Mounted Communication Terminal is a high-capability terminal device designed for mobile communication scenarios where access to 4G/5G public networks, 5G vehicle stations, 5G aerial stations, 5G portable stations and 5G fixed stations is required. It supports flexible communication access in vehicle-mounted, mobile and temporary deployment environments.
As part of the 5G terminal product range, this device can form ad-hoc networks among terminals and supports relay networking and link selection functions. This makes it suitable for mission communication, mobile command systems, emergency communication, field operations and temporary network scenarios where stable connection, self-organizing capability and wide-area access are important.
Application
This product is designed for vehicle-mounted communication systems, mobile command platforms, emergency response networks, public safety communication, field operations, ship-mounted scenarios, temporary broadband access, 4G/5G public network access and terminal self-organizing network deployment.
Key Features
- Vehicle-mounted 5G communication terminal for mobile deployment scenarios
- Supports access to 4G and 5G operator networks
- Supports access to 5G vehicle stations, aerial stations, portable stations and fixed stations
- Capable of forming ad-hoc networks among terminals
- Supports relay networking and link selection functions
- Access network bands include B1, B3, B5, B8, B39, B40, B41, B34, N1, N8, N28, N41, N78 and N79
- Ad-hoc network frequency range from 512MHz to 566MHz
- Maximum transfer rate of ≥40Mbps for 4G and ≥600Mbps for 5G
- Terminal ad-hoc network transfer rate of ≥90Mbps
- Transmission delay of 18ms or less
- Compact vehicle-mounted structure with DC 10V to 32V power supply
Technical Specifications
| Item | Parameter |
|---|---|
| Product type | Vehicle-mounted communication terminal |
| Working frequency range | Access network: B1, B3, B5, B8, B39, B40, B41, B34, N1, N8, N28, N41, N78, N79 Ad-hoc network: 512MHz ~ 566MHz |
| Maximum transfer rate | 4G: ≥40Mbps 5G: ≥600Mbps Terminal ad-hoc network: ≥90Mbps |
| Transmitted power | Public network N28 / N41 / N78 / N79: 23±2 / -3dBm Private network N28: 33±2dBm, 1T2R Ad-hoc network: 33±2dBm, 2T2R |
| Transmission delay | ≤18ms |
| Size | 254 × 259 × 80 mm, ±3.0 mm |
| Weight | ≤6 kg |
| Power dissipation | ≤120 W, maximum transmission power for access mode and ad-hoc network mode simultaneously |
| Power supply | DC 10V ~ 32V |
Operational Benefits
The vehicle-mounted terminal enables communication access across public 4G/5G networks and dedicated 5G station systems, making it suitable for scenarios where users need flexible connectivity while moving between different network environments. Its support for terminal ad-hoc networking helps maintain communication even when conventional infrastructure is limited or unavailable.
With relay networking, link selection, multi-band access support and low transmission delay, the 5G Vehicle-Mounted Communication Terminal provides a practical solution for mobile command, emergency response, field communication and mission-critical broadband access.
Recommended Use Cases
- Vehicle-mounted mobile communication systems
- Mobile command and coordination platforms
- Emergency response and disaster recovery communication
- Terminal ad-hoc network deployment
- Relay networking and link selection scenarios
- 4G/5G public network access
- Private 5G network terminal access
- Field operations, ship-mounted and temporary communication environments
